Utilising formula fields

The formula field instantly performs calculations based on values added to other fields on the entry form. To create your formula you'll need to reference the slugs or short titles of these fields.

Important: formulas must be enclosed in curly braces: {}.
Note: all field types are supported excluding table fields, content fields, and other formula fields.

Configure a formula field

  1. In the Manage workspace, navigate to Entries and click Edit form
  2. Locate where you'd like to place your formula field, hover your cursor over it, and click the + that appears
  3. In the configuration tray on the right side of the page, select Formula from the Field type drop-down
  4. Provide a Label and Short title
  5. If desired, add in Hint text and/or Help text to provide context to entrants
  6. In the 'Options' section, key in your formula utilising the functions listed below
  7. Under the 'Access' heading, choose whether this field is hidden from entrants by deselecting the Read checkbox if necessary
    Tip: hidden fields can be shown to judges during the evaluation process, for more information see: Show/hide fields for judging
  8. Save when finished

Examples

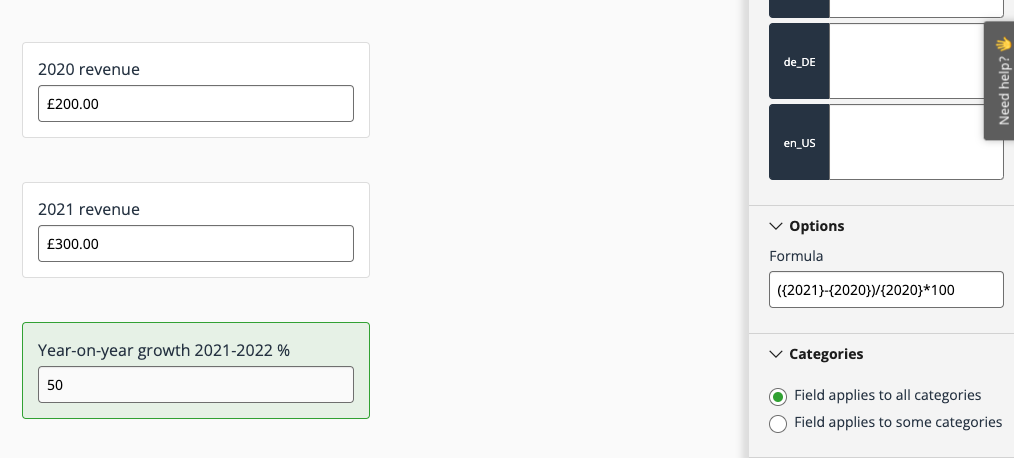

If you want to calculate the year-on-year growth in revenue for two fields with short titles "2020" and "2021" you would reference each field as {2020} and {2021} in your formula. Here's how it will look:

({2021}-{2020})/{2020}*100

year-on-year calculation in formula field

To round the result to two decimal places you can use the round function as follows:

round(({2021}-{2020})/{2020}*100,2)

Available functions

The formula field supports a number of different functions, many of which will be familiar if you use formulas in Excel and other spreadsheet tools. Here are some examples of what you can do.

Number and currency fields

Average
Takes the average of the specified fields
average({field1},{field2},{field3},{field4})
Sum
Sums the specified fields
sum({field1},{field2},{field3},{field4})
Min
Returns the smallest number of the specified fields
min({field1},{field2},{field3},{field4})
Max
Returns the largest number of the specified fields
max({field1},{field2},{field3},{field4})
Round
Rounds to specified number of decimal places
round(number,count)
Round up
Rounds up to specified number of decimal places
roundup(number,count)
Round down
Rounds down to specified number of decimal places
rounddown(number,count)



Strings

Concatenate
Combines several text strings into one string
concatenate({field1},{field2},...{fieldn})
Exact
Returns true if both strings are exactly the same
day({field1},{field2})
Left
Extracts a given number of characters from the left side of a text string.
left({field},4)
Lower
Converts the text to lowercase
lower({field})
Mid
Returns a substring of a given length starting from a specific position
mid({field},start_position,length)
Proper
Capitalises the first word of a string
proper({field})
Replace
Replaces a substring of a given string
replace({field},start_position,length,"new string")
Right
Extracts a given number of characters from the right side of a text string.

right({field},4)



Dates

Today
Returns today's date
today()
To format the date use text(today(),"MM/DD/YYYY")
Days
Calculates the difference between two date values
days({field1},{field2})
Month
Returns the month for a date value
month({field1})
Year
Returns the year for a date value
year({field1})
Day
Returns the day for a date value
day({field1},{field2})
Edate
Shifts the date by the given number of months
edate({date},months)
To format the date use text(edate({start},3),"dd/mm/yyyy")
Hour
Returns the hour for a given time
hour({time})
Now
The current date and time
now()
To format use:
text(now(),"dd/mm/yy hh:mm:ss")
Weekday
Returns the number that corresponds to a day of the week
weekday({field})
Week number
Returns the number that corresponds to the week of the year
weeknum({field})

Age

Returns the age for a given date

rounddown(days(today(),({DOB}))/365,0)

Countdown

Calculates the days and hours until a given date and time

days({Date 2}, {Date 1}) & " days, " & hour({Date 2}) - hour({Date 1}) & " hours"



Engineering

bin2dec
Converts a binary number to decimal
bin2dec({field})
bin2hex
Converts a binary number to hexadecimal
bin2hex({field})
dec2bin
Converts a decimal number to binary
dec2bin({field})
dec2hex
Converts a decimal number to hexadecimal
dec2hex({field})
delta
Returns true(1) if both numbers are equal otherwise false(0)
delta({field1},{field2})



Information

isnumber
Returns true if the field contains a number
isnumber({field1})
iseven
Returns true if the field contains an even number
iseven({field})
isodd
Returns true if the field contains an odd number
isodd({field})
istext
Returns true if the field contains text
istext({field})



Logical

if
If/then test
if({field1}>1000,"then value1", "otherwise value2")
and
Returns true if all arguments are true
and({num1}=3, {num2}=3)
or
Returns true if at least one argument is true
or({num1}=3, {num2}=3)



Good to know

  • Unlike Excel or many other spreadsheet tools, it isn't necessary to add a = symbol to indicate the start of a formula.
  • The formula is stored referencing the field slugs, not the short title. If a field's short title is changed later, existing formulas that reference that field will not break.
  • Calculated values are stored on the entry record when the entry is saved. This will allow a formula field column to be added to the many of the views in the platform, such as Entries in the Manage workspace.
  • Changes to a formula after entries already exist with saved values will trigger a recalculation of all stored values.

To learn about other field types supported by Award Force, check out our guide: Field types overview.
